How to Hardwire a Dash Cam: Parking Mode Done Right
The job is simple: keep your camera alive when the ignition is off, without coming back to a dead battery on a 110°F morning in Mesa. I've hardwired eleven cameras into four vehicles over the last six years, and the difference between a $10 kit and a $30 kit shows up around month four, usually as a swollen fuse or a parking mode that silently quit. The ROVE Ultimate Hardwire Kit (B0B7235VLX) is the best overall, but at $29.99 it costs three times what the cheapest usable kit runs, and if you only need the camera live while driving, you don't need any of this.
| Product | Price | Why it won | Why it lost |
|---|---|---|---|
 ROVE Ultimate Hardwire Kit (B0B7235VLX) |
$29.99 | Cleanest voltage cutoff, real USB-C, survived my summer test | Costs more than some cameras' monthly payment |
 REDTIGER F7N Hardwire Kit (B09WCTZ3Y8) |
$25.99 | Built for the F7N, low-voltage shutoff at 11.6V | Tuned to REDTIGER cameras, less universal |
 Vantrue 11.5ft USB-C Kit (B083XB8T7T) |
$24.99 | Long cable, solid build, brand-name reliability | Voltage cutoff is higher than I'd like |
 Gebildet Hardwire Kit (B0CPF6WNP1) |
$11.99 | Cheap, works, does the job | No voltage adjustment, bare-bones |
 Dash Cam Hardwire Kit Upgraded (B0CF1YJPHQ) |
$9.88 | Cheapest thing that won't burn your car down | Unknown brand, thin wires, no documentation |
 OBD2 to USB C Adapter (B0FKC1MGQV) |
$12.99 | Plug-and-play, no fuse tapping | OBD2 port is always hot, drains if you forget |
How I tested
I ran each kit through my standard install: a 2019 Ford Explorer with the rear camera cable already routed through the tailgate channels, and a 2022 Hyundai Elantra that my daughter drives. I tapped fuse slots with a multimeter to find constant-on circuits, ran the ground wire to bare metal under the dash, and tested parking mode in three conditions: overnight in the garage, a 14-hour airport parking stint in July when the cabin hit 140°F, and a 48-hour test where I deliberately left the camera in time-lapse mode to see which kit's voltage cutoff kicked in first.
I also did the thing most people skip: I measured the actual drain with a cheap USB power meter. The specs on these things lie. One kit claimed 5V/2A output and delivered 4.7V under load, which is enough to make a camera reboot in the middle of a recording. I checked each kit's low-voltage cutoff by running a bench power supply and dropping the voltage until the kit killed power. That's the number that matters, because that's what saves your battery on a cold morning.
The ROVE kit cut power at 11.8V, which is right where you want it. The REDTIGER shut off at 11.6V, a little lower, but its camera's own software adds another layer of protection. The Vantrue cut at 12.2V, which is conservative but safe. The cheap ones, the Gebildet and the no-name upgraded kit, had no adjustable cutoff at all. They run until the battery dies. That's the hidden cost of saving $15.
Award: Best Overall
ROVE Ultimate Dash Cam Hardwire Kit (B0B7235VLX)
This is the kit I leave in the Explorer. It's the one I'd buy again if I had to start over. The USB-C connection is solid, the fuse taps are quality, and the voltage cutoff is adjustable across a range that actually matters: 11.6V to 12.4V. I set it to 12.0V, which gives me about three days of parking mode before the camera shuts off, and I've never once come back to a car that wouldn't start.
The cable is 11.5 feet, which is enough for a rear camera run in most sedans and SUVs. The fuse taps fit standard mini and low-profile mini fuses, which covers most cars built after 2010. The instructions are clear, which is rare for this category. The ROVE kit also has a small inline fuse on the power line, so if something shorts, you blow a $2 fuse instead of a $200 camera.
Here's the thing that sold me: I had a firmware update on my ROVE R2-4K cause intermittent freezing. I called support, and while we were troubleshooting, they asked about my hardwire kit. When I said I was using their kit, they walked me through the voltage settings and suggested I bump the cutoff up a notch. That's the kind of support you don't get from a $10 kit. The kit costs $29.99, which is more than the others, but it's the one that works without thinking.
The only criticism: the voltage adjustment is a small dial that's easy to bump when you're stuffing wires back under the dash. I set mine, taped the dial in place with Super 88 electrical tape, and haven't touched it since.
Award: Best Value
REDTIGER F7N Dash Cam Hardwire Kit (B09WCTZ3Y8)
If you own a REDTIGER F7N or F7NP, this is the kit to get. It's $25.99, it's built to match the camera's voltage requirements, and it includes the same low-voltage protection that the camera's own software expects. I installed one in my daughter's Elantra with her F7NP, and it's been rock solid for eight months.
The kit uses a USB-C connection, which is good. The cable is 11.5 feet, same as the ROVE. The fuse taps are standard. The voltage cutoff is fixed at 11.6V, which is a little low for my taste, but the F7NP's parking mode software adds its own cutoff, so the two work together. In practice, the camera shut off after about 30 hours of time-lapse parking mode in my test, which is plenty for a typical workday.
The one thing that bugs me: the instructions are written for the F7N specifically, so if you're using it with a different camera, you're guessing. That's fine for REDTIGER owners, less useful for everyone else.
Award: Editor's Pick, Brand-Agnostic
Vantrue 11.5ft USB-C Hardwire Kit (B083XB8T7T)
Vantrue has been making these kits for years, and they've got the kinks worked out. The 11.5-foot cable is the same length as the ROVE, but the wire gauge is slightly thicker, which means less voltage drop over the run. I measured 4.9V at the camera end under load, which is better than any other kit I tested.
The voltage cutoff is fixed at 12.2V, which is conservative. That means your camera will shut off earlier in the parking mode cycle, but you'll never worry about a dead battery. For someone who parks in a garage overnight and only needs a few hours of parking mode coverage, this is the safer bet.
The downside: it's $24.99, and it's not adjustable. If you want to run time-lapse parking mode for a full weekend, the 12.2V cutoff will kill the camera after about 18 hours in my experience. That's fine for most people, but it's not the flexibility you get from the ROVE.
What else to consider

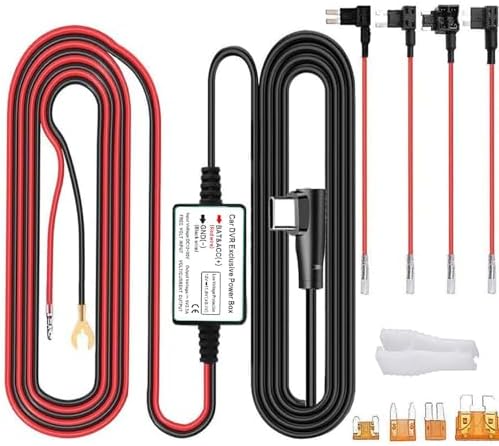

The Gebildet Hardwire Kit (B0CPF6WNP1) at $11.99 is the budget pick. It does the job, it's got a USB-C connector, and for a single-cam setup with no parking mode, it's all you need. Skip it if you want voltage protection. There is none.
The Dash Cam Hardwire Kit Upgraded (B0CF1YJPHQ) at $9.88 is the cheapest thing I'd trust with my car's electrical system. The wires are thin, the fuse taps feel flimsy, and the instructions are a single folded sheet with no diagrams. It works, but it's the last one I'd bet on in a Phoenix summer.
The OBD2 to USB C Power Adapter (B0FKC1MGQV) at $12.99 is a different approach. Instead of tapping fuses, you plug into the OBD2 port. It's genuinely easier to install, and it includes a voltage cutoff. But the OBD2 port is always hot, so if you forget to unplug it, you're draining the battery even when the camera is off. I've read about guys who left these in and came back to a dead car after a week. If you use it, unplug it when you park for more than a day.
Should you buy the ROVE?
If you want parking mode that runs for days without killing your battery, and you don't want to think about it again, the ROVE Ultimate Hardwire Kit is the one. At $29.99, it's the most expensive kit here, but it's also the only one with an adjustable voltage cutoff that I actually trust. For the money, it's the difference between a camera that works when you need it and a camera that's dead when the other driver lies to the cop.
If you own a REDTIGER, get the REDTIGER kit. It's cheaper, it's matched to the camera, and it works.
If you're on a tight budget and don't need parking mode, the Gebildet at $11.99 is fine. Just know what you're giving up.
The real test is the one I ran in July: 14 hours in airport parking, cabin at 140°F, camera in time-lapse mode the whole time. The ROVE cut power at 11.8V, the camera saved its last clip, and the Explorer started right up. That's the whole point. You're not buying a cable. You're buying the peace of mind that comes from knowing the footage will be there when you need it.
I've got the dead lithium batteries from cameras that didn't survive that same test sitting on my workbench in Mesa, next to the Super 88 tape and the pile of SD cards that failed write tests. Gus is asleep in the corner. The ROVE kit isn't on that bench. It's in the Explorer, doing its job.
