How To Hide Dash Cam Wires Cleanly

Well, the marketing photos always make it look so clean. A tidy wire tucking under the headliner, disappearing into the A-pillar, gone. But is that really how it goes? I've installed over forty dash cams in the last six years, mostly in my own cars and the cars of rideshare drivers I know, and I can tell you that the "clean install" is a bit of a myth until you've done it a few times. I've been running a ROVE R2-4K in my daily driver for 18 months now, and before that, a REDTIGER F7NP in my old car. I've pulled more interior trim than I care to admit, and I've learned exactly which clips hold and which ones are junk. Here is the truth about hiding those wires without a mess.

Product	Price	Why it won	Why it lost
Dash Cam Installation Kit (B0DBVK1GWC)	Check price	Best value, includes the trim tool you actually need plus 20 quality adhesive clips	None, it's the whole package
30 Pcs Small Black Adhesive Cable Clips (B0CGRXNLWF)	Check price	Cheap, small, perfect for the headliner edge	Adhesive can fail in Phoenix heat
Cable Clips Self with 3M Adhesive (B086RRTBLW)	Check price	Strong 3M tape, holds tight on painted surfaces	A bit bulky for tight spots
60Pcs Adhesive Cable Clips (B0GG4QMV37)	Check price	Great quantity for the price, you won't run out	Same heat adhesive concerns
Car Trim Cable Clips (B0GVB4D69D)	Check price	No adhesive, clips into trim gaps, reusable	Pricier, and fit varies by car
Yosoo Health Gear Wire Cover (B0H23VC597)	Check price	Hides the wire completely on the windshield pillar	Only works for the short vertical run

How I Tested

I didn't test these in a lab. I tested them in a 2019 Ford Explorer that sits in a Phoenix driveway where the dashboard regularly hits 130°F in July. I ran the rear camera cable through the existing channels, which is the real test. I used each clip type to secure the cable along the headliner, down the A-pillar, and under the glovebox. I yanked on them, I left them in the sun for weeks, and I checked which ones held after the interior got hot enough to soften most adhesives.

The Trim Tool Is The Real Hero

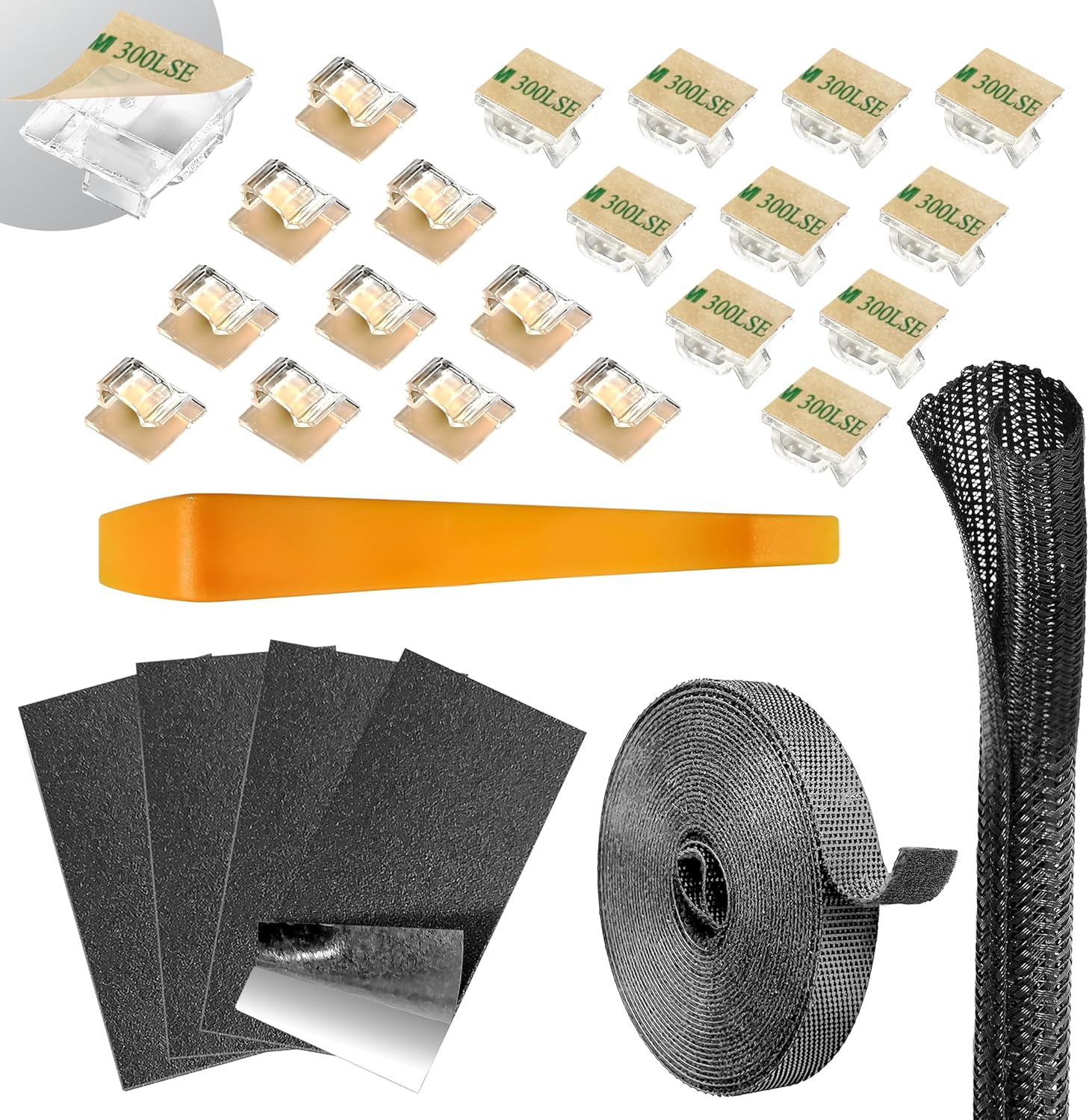

The biggest mistake I see people make is trying to tuck a wire with a credit card or a screwdriver. A screwdriver will gouge your headliner. A credit card is too flexible to push a stiff USB cable into the gap. The only thing that works consistently is a proper trim removal tool, and the Dash Cam Installation Kit (B0DBVK1GWC) is the one to get.

The version I own came with a red nylon trim tool that has a 90-degree angle on one end. That angle is the whole trick. You slide it into the gap between the headliner and the roof, and it pries the trim just enough to push the wire in. It also came with 20 adhesive cable clips, which is more than enough for a full front and rear install. For $12.99, it costs less than the trim tool alone from any auto parts store, and the clips are the same style I've paid $8 for in smaller packs.

The one thing I'll say is that the trim tool isn't magic. On the Explorer, the A-pillar trim is held by a metal clip that requires a firm pull. The plastic tool won't break it, but you need to know where the clip is or you'll be fighting it. I've done this enough times that I can find it blind, but if you're new to this, watch a video of your specific car model first.

The Clips That Survive The Heat

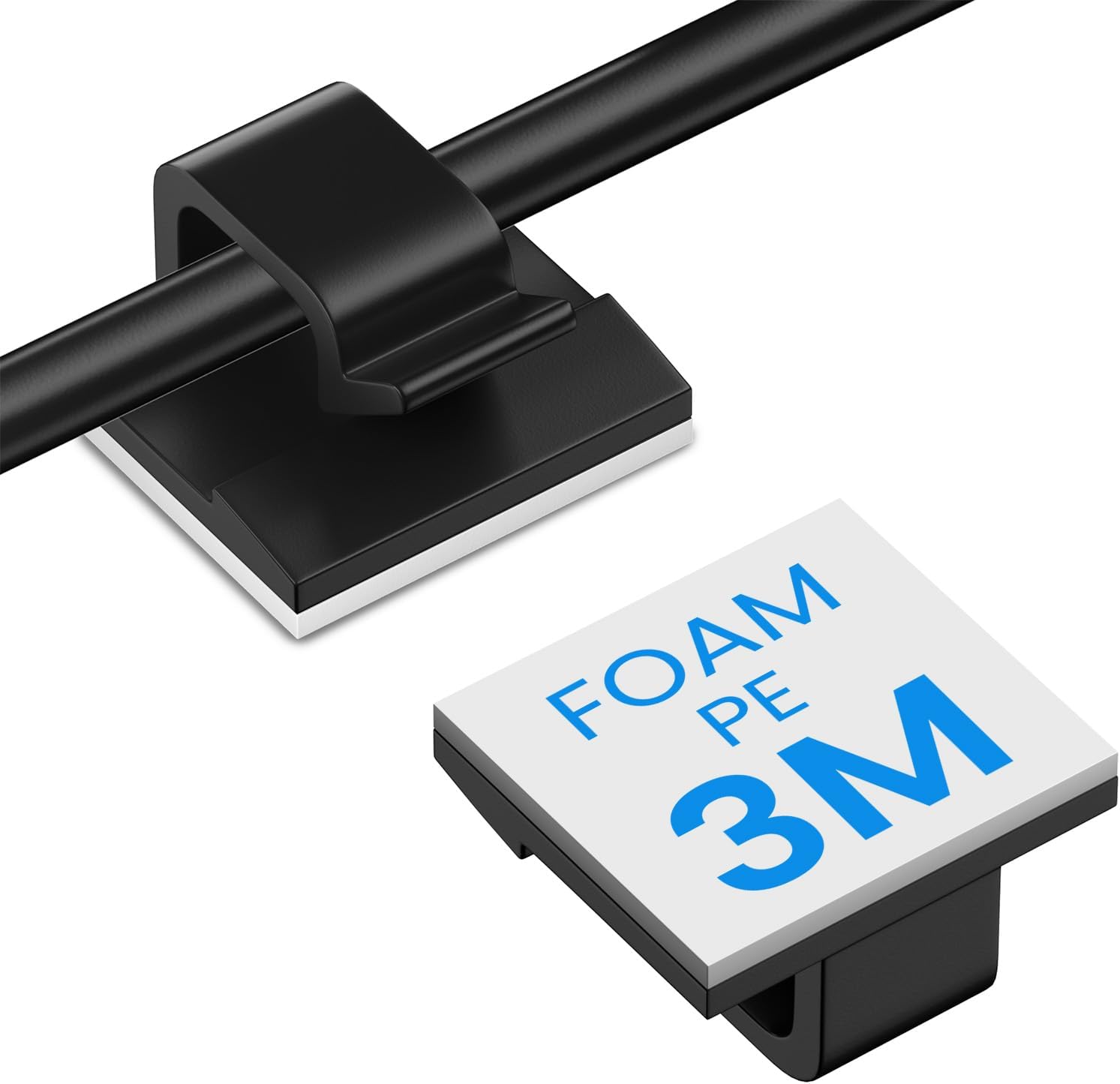

The biggest problem with adhesive clips in Arizona is that the 3M tape softens and the clip slides down the headliner after a week of 110°F days. The 30 Pcs Small Black Adhesive Cable Clips (B0CGRXNLWF) are the ones I've had the best luck with. They're small, which means they fit into the tight gap where the headliner meets the windshield, and the adhesive has held for the three months I've had them in the Explorer.

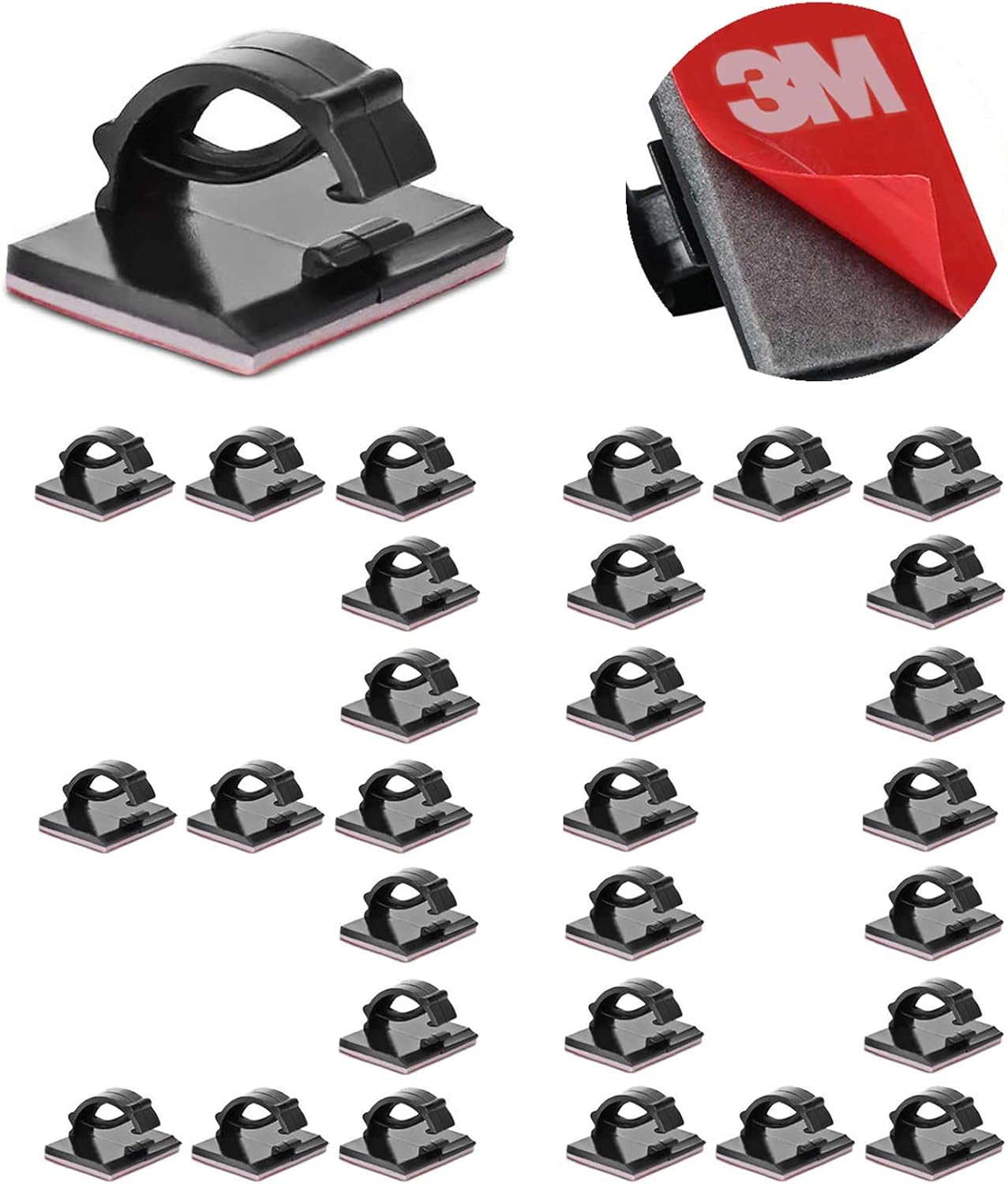

I've also used the Cable Clips Self with 3M Adhesive (B086RRTBLW) on the painted surface of the A-pillar, where the wire has to make the jump from the headliner down to the fuse box. These are wider and have a stronger hold, which is what you want on a vertical painted surface. The tradeoff is that they're a bit bulky, and on a tight A-pillar, they can look cluttered if you use more than two or three.

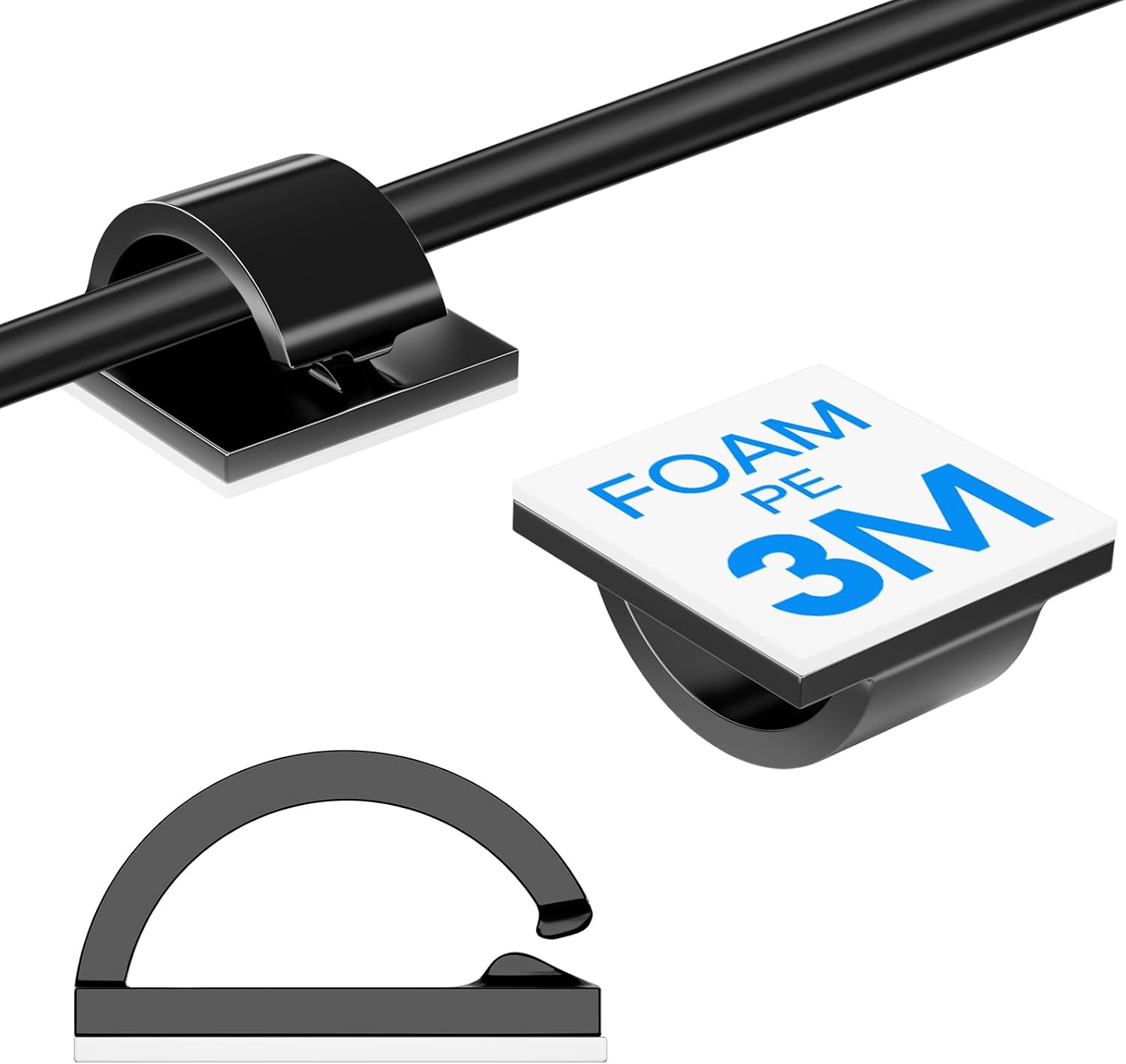

For the sheer volume, the 60Pcs Adhesive Cable Clips (B0GG4QMV37) are hard to beat at $6.99. You get enough to do two cars and still have a drawer full of spares. The adhesive is the same quality as the smaller pack, which means it's fine for interior use but won't survive a hot windshield for long.

The No-Adhesive Option

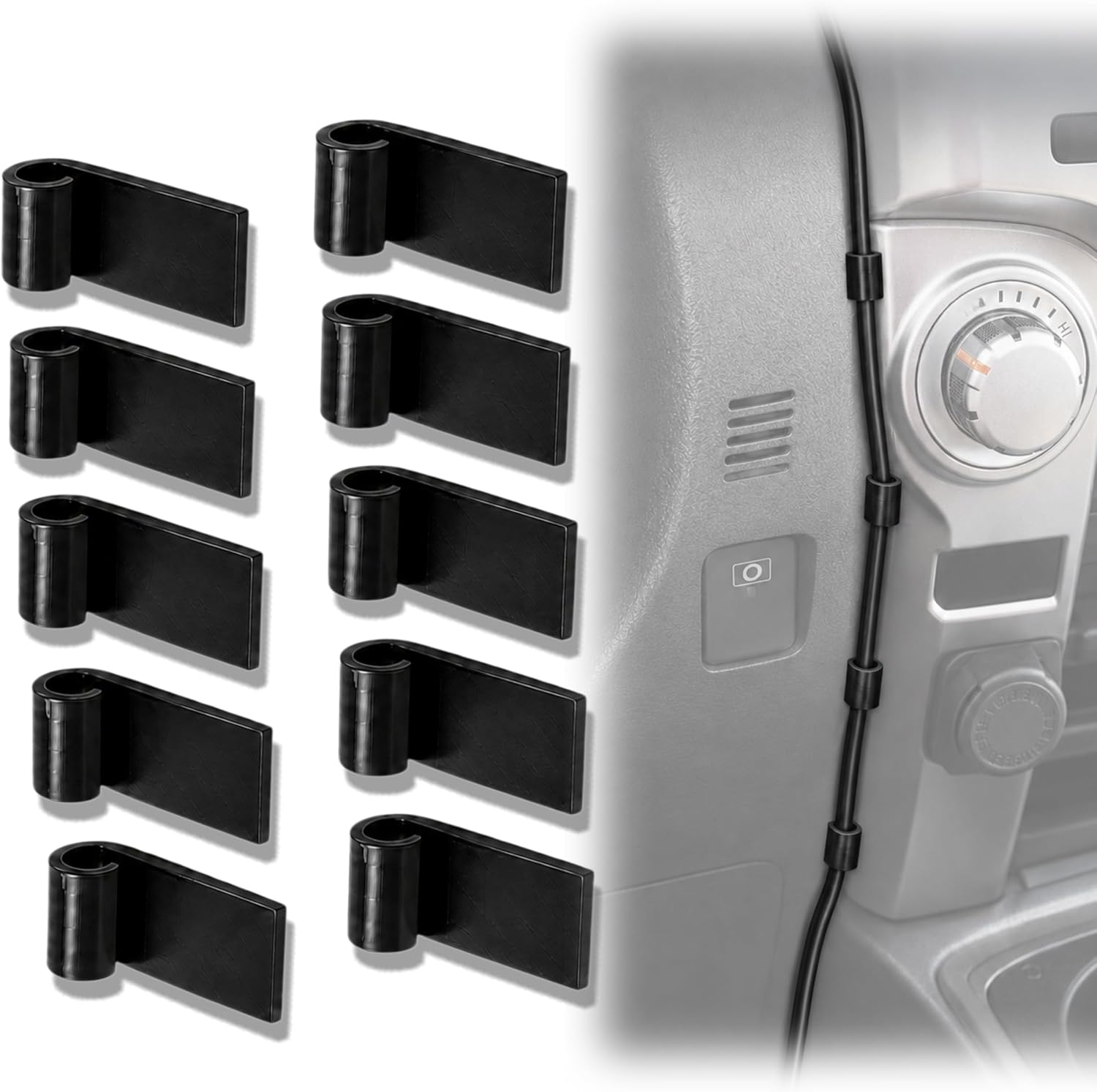

If you're installing in a car you lease, or you just don't trust adhesive on your headliner, the Car Trim Cable Clips (B0GVB4D69D) are worth a look. These clip into the gap between the trim panels themselves, no adhesive required. They're a 10-pack for $15.99, which is pricier per clip, but they're reusable and they don't leave residue when you remove them.

The catch is that they only work if your car has a gap wide enough to accept them. On the Explorer, they fit fine along the headliner edge, but they were too thick for the tight gap where the windshield meets the dash. I ended up using them for the rear window run, where the trim has a bit more give. If you're not sure about your car's trim gaps, these are a gamble.

The Wire Cover For The Ugly Part

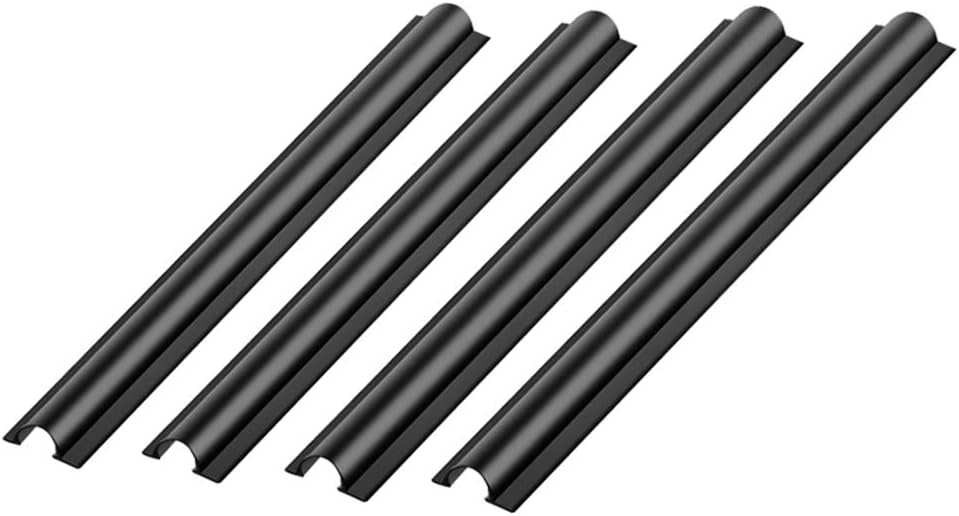

The one spot that always looks bad is the exposed wire running from the top of the windshield down the A-pillar. You can tuck it behind the trim, but on many cars, there's a section where the wire has to cross over an airbag seam or a hard plastic joint. The Yosoo Health Gear 4 Pack Car Concealed Wire Cover (B0H23VC597) fixes that.

These are stick-on channels that hide the wire completely. They're $8.57 for a 4-pack, and they come in black so they blend into most interiors. I used one on the Explorer to cover the short run from the headliner down to the dash, and it looks factory. The downside is that they're only good for straight or gently curved runs. You can't bend them around a tight corner without kinking the wire inside.

How I Route The Cable

Here's the method I've settled on after years of doing this. I run the front camera wire up behind the rearview mirror, then along the headliner edge toward the A-pillar. I use the small adhesive clips to hold it in place every few inches. At the A-pillar, I tuck the wire behind the trim, but I always leave a loop of slack near the airbag seam. You do not want a wire crossing directly over an airbag deployment path. The loop gives it room to move without snapping the cable.

From there, the wire drops down the A-pillar and under the dash to the fuse box if I'm hardwiring, or to the 12V outlet if I'm not. I use the wider 3M clips to secure the wire on the painted surface under the dash.

For the rear camera, I run the cable along the headliner all the way to the back, using the same small clips. The hardest part is always the tailgate channel. On the Explorer, I had to remove a plastic trim piece to route the cable through, and I used the trim tool from the installation kit to pry it off without breaking the clips. I then used Super 88 electrical tape to secure the cable inside the channel before snapping the trim back on.

The One Thing I Won't Pretend To Know

I don't track prices day to day, so I won't pretend to know next week's Amazon price on any of these. I've seen the clip packs fluctuate by a dollar or two depending on the season. What I can tell you is that none of these are expensive enough to justify buying the cheapest option and hoping it works. The $12.99 installation kit is the one I'd buy first.

The Bottom Line

Hide the wire with a trim tool, not a screwdriver. Use the small adhesive clips along the headliner and the wider ones on painted surfaces. Leave slack at the airbag seams. And if you live somewhere hot, expect to re-stick a few clips after the first summer. That's the real cost of a clean install, and it's about 20 minutes of work and $13. For the money, the Dash Cam Installation Kit (B0DBVK1GWC) is the one to get.
